30m Portable Drilling Rig DTH Drilling KG726 Rig Mining Borehole Equipment

Name: 30m Portable Drilling Rig DTH Drilling KG726 Rig Mining Borehole Equipment
Brand: Silk
Price: 15000 USD

Wholesale 30m Portable Drilling Rig DTH Drilling KG726 Rig Mining Borehole Equipment from china suppliers

Brand Name : Silk

Model Number : KG726III/KG726HIII

Certification : ISO9001,CE

Place of Origin : China

MOQ : 1 set

Price : $15000 - 21000 / Set

Supply Ability : 10 set per month

Delivery Time : 10-30 days

Packaging Details : Nude packing or as per customer's request, suitable for long transportation.

Model : Down the hole drilling rig

Drilling Diameter : 90-115mm

Push Way : Motor.Chain

Drill bit : Φ90,Φ100， Φ110

Drilling depth : 25-30m

Usage : Coal,Ore,Drill holes,drill rock

Type : Rotary Drilling Rig,High Pressure Crawler Drill

After-sales service provided : Engineers available to service machinery overseas,Video technical support

Contact Now

DTH Drilling KG726 Rig Mining Borehole Equipment 30m Portable Drilling Rig

Applications
The KG726HIII down the hole drill rig for open use is equipped with a dust collector, thus making operation more environment-friendly and reliable.
The tramming motor of plunger piston and four-wheel drive improve the working pressure and climbing capacity.The expanded pitch and lifting-arm hydraulic cylinder enable it to meet the requirements of limiting position use.Meanwhile,the hydraulic system is improved,thereby proving increased system flow and rotary speed.The hydraulic cylinder has been optimized,thus making it more more reliable.The guide rail is installed in an inclined way,making operations and observations easier.The thickened profile isn used for the housing;and the additional ring makes handing and lifting convenient.

Brief Parameters
Drilling diameter :Φ90-115mm
Depth of economical drilling :25m
Method of Feed:Oil cylinder-leaf chain
Feed stroke: 3780mm
Supporting power:Yuchai YC4R23T8-80(59KW/2400r/min)

Model of drill rig	KG726III	KG726HIII
Weight of complete machine	4200KG	4400KG
Outer dimensions	5600×2400×2300mm	5600×2600×2300mm
Drilling Hardness	f=6-20
Drilling diameter	Φ90-115mm
Depth of economical drilling	25m
Rotary speed	0-120rpm
Rotary torque(Max)	2000N·m(Max)
Lifting force	18KN
Method of Feed	Oil cylinder-leaf chain
Feed strock	3780mm
Travelling speed	0-2.5km/h
Climbing capacity	≤30°
Ground clearance	350mm
Tilt angle of boom	Down: 135°, up: 50°, total: 185°
Swing angle of boom	Left: 100°, right: 45°, total: 145°
Pitch angle of drill boom	Down: 50°, up: 25°, total: 75°
Swing angle of drill boom	Left: 44°, right: 45°, total: 89°
Leveling angle of track	±10°
Compensation length of beam	900mm
Supporting power	Yuchai YC4R23T8-80(59KW/2400r/min)
DTH hammer	M30
Drilling rod	Φ64×3m/Φ64×3m
Air consumption	9-17m3/min
Maximum height of horizontal hole	2750mm
Minimum height of horizontal hole	350mm

Recommended Air Compressors
Diesel engine portable screw air compressor:	Silk LGCY-12/10
	Silk KSCY-580/13
	Silk LGCY-12/10
	Silk KSCY-580/13
Note: Air compressor selection subject to hole dimameter and air hose length

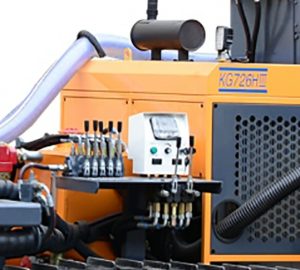

Easy Used Control Panel
High torque gyrator

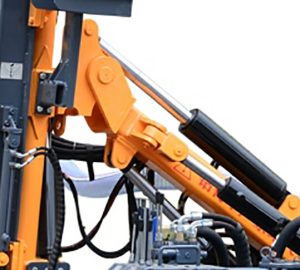

Stable hydraulic system

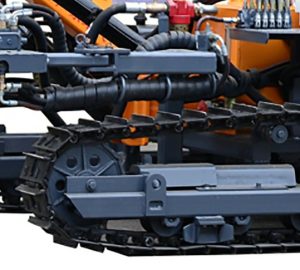

Steel track adaptable to all terrains

Techincal parameter

30m Portable Drilling Rig DTH Drilling KG726 Rig Mining Borehole Equipment
